BF40ID - Proximity card reader with Wiegand 26 output |
 |
|
|
There are two
different wiegand 26 reader, one is only the
Proximity card reader, another one is the
Proximity card plus Pin code reader.
BF40ID is coming with the keypad. It means
that you can use the card or pin code to send
out the wiegand
BF40 can support different card, such as "
BF40ID support 125KHz card
BF40IC support 13.56MHz card
BF40HID support HID card. |
|
|
|
| Antenna |
52mm*88mm |
| Dimensions |
88mm×108mm218mm,
0.5kg |
| Card
read Time |
< 0.02 seconds |
| Valid distance |
0-8CM |
| Interface |
Wiegand
26 (Data 0 and Data1)
DC 12V input |
Card
reader
Keypad |
Yes
Yes |
| Power
Supply |
12VDC@1A |
*
This model offers ONE year warranty period
for manufacturing defects.
|
|
|
|
| Installation
: Connecting by Wiegand 26 |
|
|
|
|

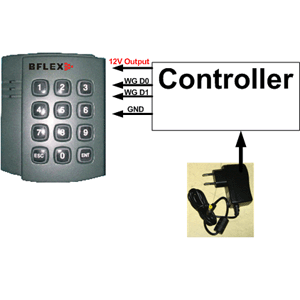

Installation of BF40ID VIA Wiegand
26 output
|
|
|
|
|

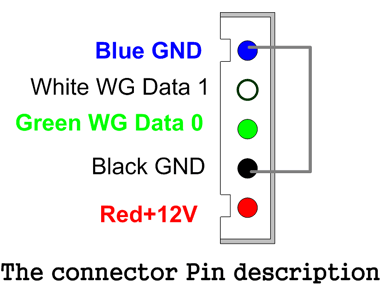

the connector of wiegand 26
output on BF40ID
|
|
|
|
|
